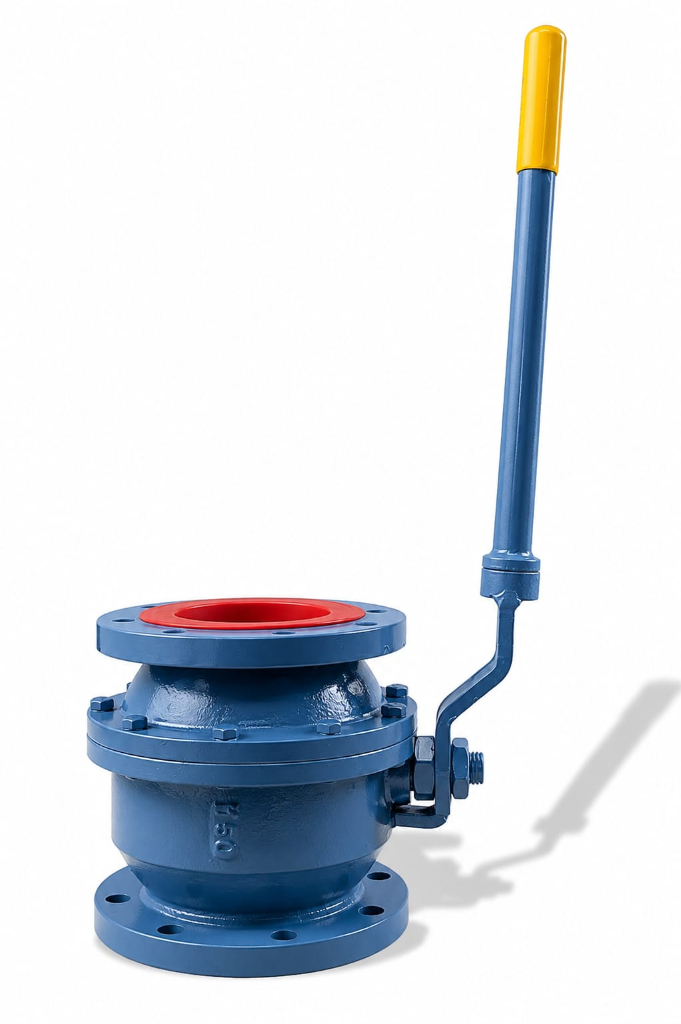

CI 2PC BALL VALVE F/E ASA150#

Part Name Material (Proposed) 1 Centre Body CI – Cast Iron 2 End Connector (2 Nos.) CI – Cast Iron 3 Ball SS304 / SS316 4 Ball Seat (2 Nos.) PTFE 5 Stem SS304 / SS316 6 Stem Packing PTFE 7 Body Gasket / Seal PTFE 8 Lever Handle MS / CS with coating 9 Fasteners CS / SS, as per design

Primary Service Rating & Test Pressure

CLASS	HYD. TEST PRESSURE
	BODY	SEAT	TEMP.
150	425 PSIG	320 PSIG	100°F
