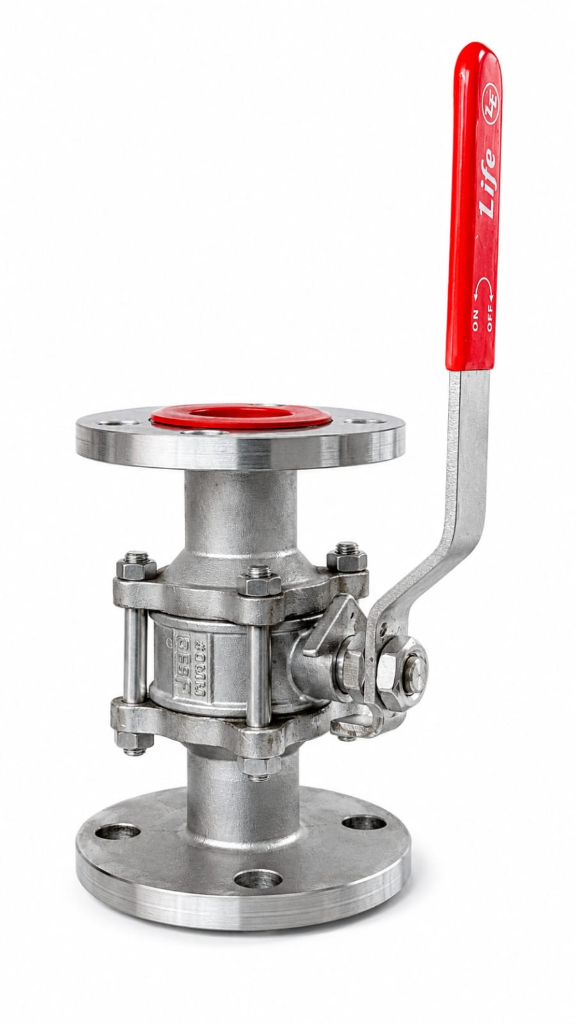

IC CF8 & CF8M 3PC BALL VALVE F/E ASA 150#

Description Technical Details 1 Valve Type 3 Piece Ball Valve 2 End Connection Flanged End 3 Pressure Rating ASA 150# / ASME Class 150 4 Body Material IC CF8 / CF8M 5 Ball Material SS 304 / SS 316 6 Ball Type Floating Ball 7 Seat Material PTFE / RPTFE 8 Stem Material SS 304 / SS 316 9 Operation Lever Operated 10 Port Full Bore / Reduced Bore (as manufactured) 11 Design Standard ASME B16.34 (design basis) 12 Flange Standard ASME B16.5 Class 150 13 Face to Face ASME B16.10, applicable pattern to be confirmed 14 Testing Standard API 598 (as specified) 15 Leakage Class Soft Seat – Bubble Tight, subject to test standard

Primary Service Rating & Test Pressure

CLASS	HYD. TEST PRESSURE
	BODY	SEAT	TEMP.
150	425 PSIG	320 PSIG	120°C
